EasyIO FS-32 Controller

32-Point, IP Controller

The FS-32 is a high-performance network controller with a 1.2 GHz quad core processor, 512 MB RAM, 8GB flash memory, HTML5 graphics, a suite of applications and kits, and multifunctional adapter widgets.

IP Sedona Controller
Built in HTML 5 Graphics
2 485 ports (32 I/O, 16 U/I, 8 DO, 8 UO)

EasyIO FS-32 Controller

Product Overview

The FS-32 offers incomparable performance and live programming via EasyIO CPT Tools. The FS-32 supports the latest IT network and security standards. The built-in VPN allows for secure remote connectivity, a unique feature in a controller.

Protocols such as BACnet, Modbus, MQTT, Sox, and TCom are supported. The FS series includes SQL database and REST API for additional data integration and multi-system interoperability. Flash RAM enables data collection and storage at the device.

The FS-32 has 16 UI, 8 UO, and 8 DO. Input point capacity can be expanded using the FD20i. Device and engineering licenses and annual maintenance upgrades are included in the one-time cost of the controller.

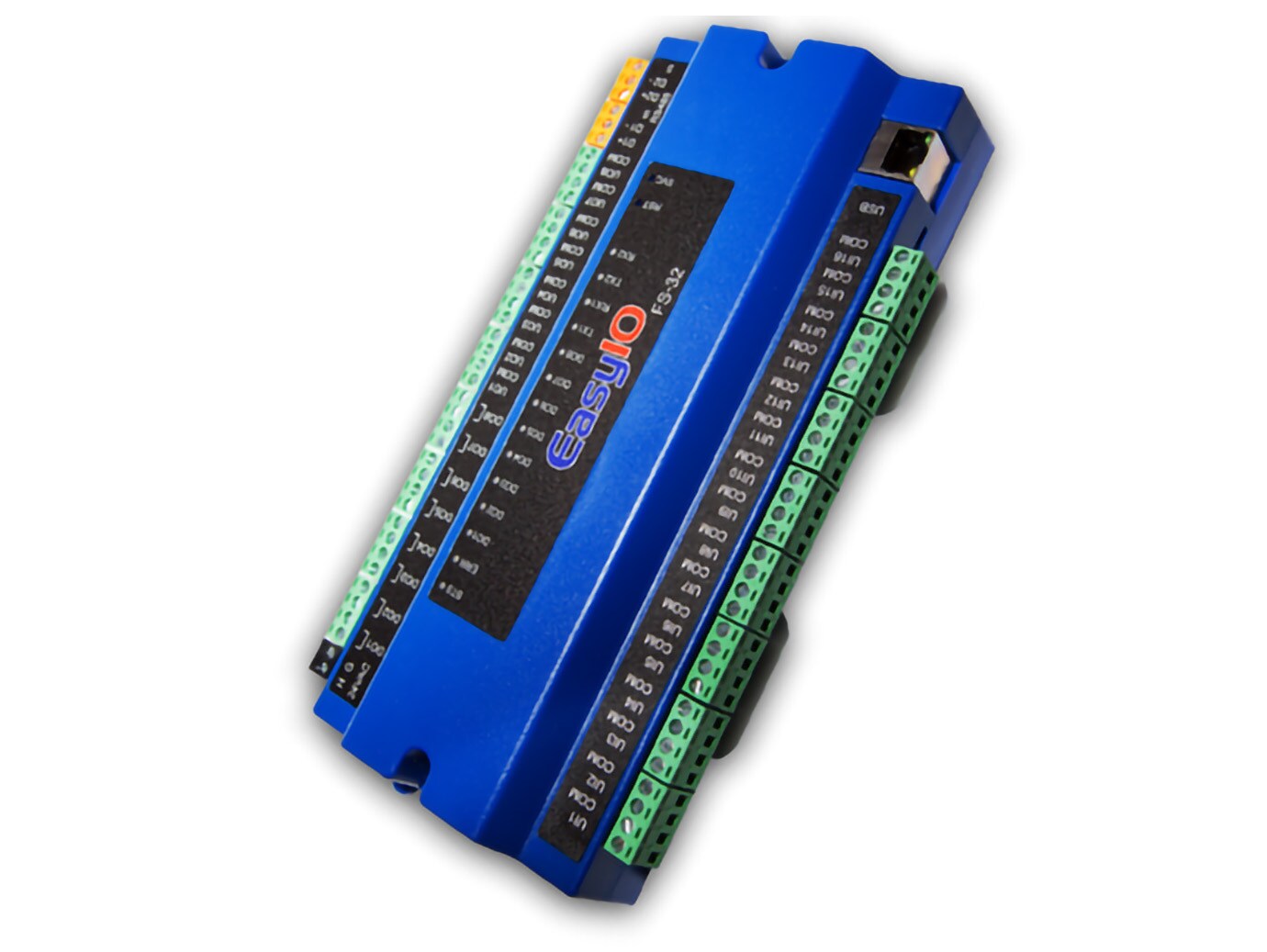

An Industrial electronic module, labeled EasyIO with multiple pin connectors

Features and Characteristics

On board 8GB of EMMC for storage and history	512MB Gbyte RAM
Supports Enterprise Network Security 802.1x and TLS 1.3, SSL, IPv6 and DHCP Client	8GB Flash Memory
BACnet MSTP Client/Server, BACnet IP Client/Server, Modbus TCP and RTU M/S, MQTT, TCOM, SOX	SD card holder
EasyIO Peer to Peer Protocol, compatible with FS, FG+, FW and FT Series	1 x 10/100 Ethernet Port
Built-in HTML 5 web server and SSL certificate support	2 x RS485
RESTful API and graphics web services	Real Time Clock
Built-in VPN Server and Client	SuperCap Apps Safety Backup
Network Time Protocol (NTP) Client	24V AC/DC Power
SMTP protocol (outgoing email) with SSL authentication	Remote Flash Upgrades
SQL Lite up to 100,000 records	16x UI
Built-in dashboard	8x DO (with LED indicator)
1.2 Ghz Quad Core ARM A7 main processor	8x UO
48 Mhz ARM Cortex-M0 processor for the I/O
