EasyIO FC-20 Controller

20-POINT IO EXPANSION CONTROLLER

The EasyIO FC20 is a cost-effective programmable controller, selectable between BACnet or Modbus. This versatile controller can be used for many applications such as RTU, AHU, FCU, small plant control, or as dummy inputs/outputs.

24 MHz ARM Cortex-M3 main processor
BACnet MSTP Server

EasyIO FC-20 Controller

Product Overview

The FC20 has twelve (12) universal inputs (UI) supporting current, voltage and resistance-based sensors, 4 electrically isolated digital outputs (DO) and 4 analog outputs (12-bit DAC) supporting current and voltage outputs.

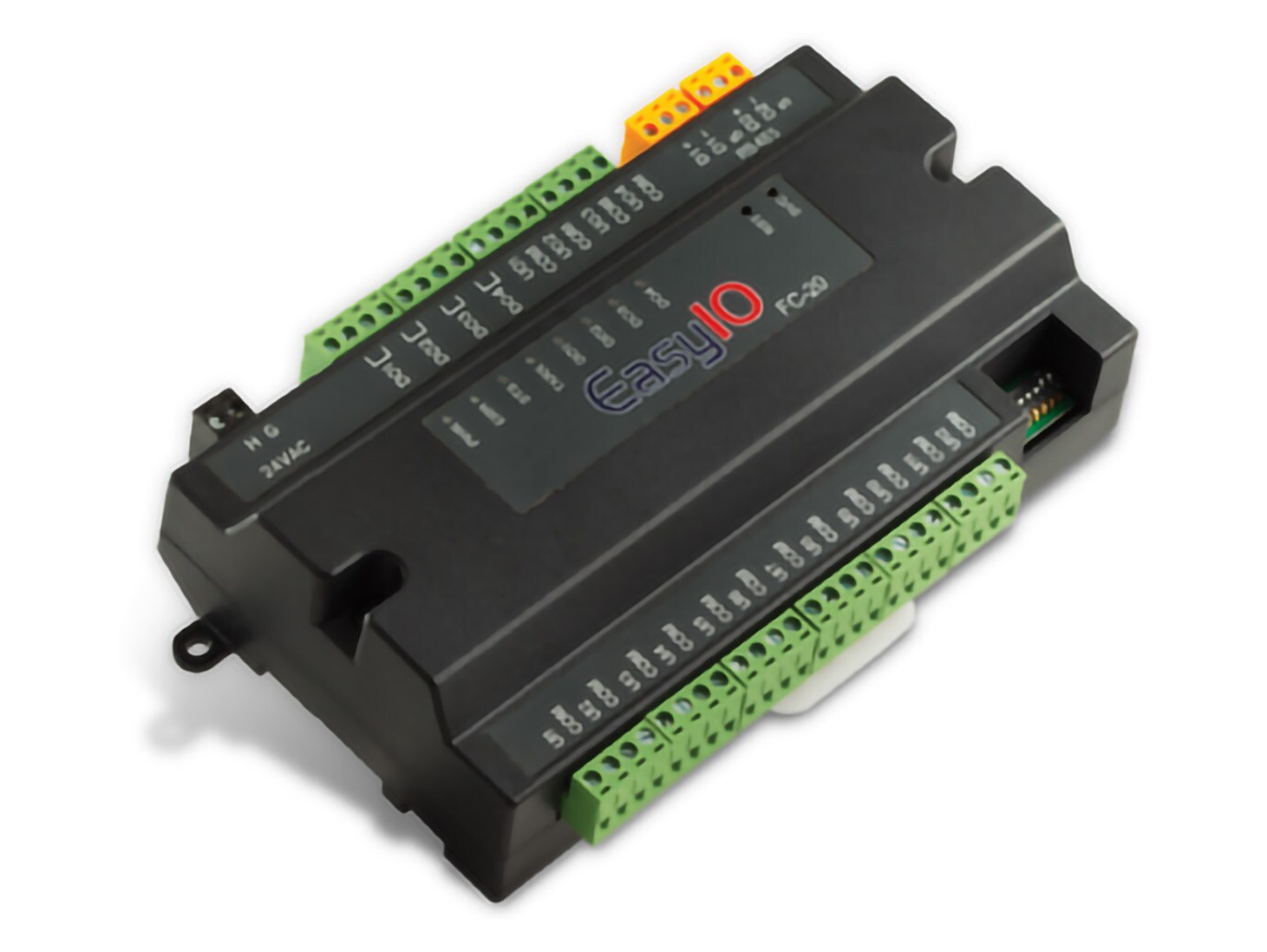

An Industrial electronic module, labeled EasyIO with multiple pin connectors

Features and Characteristics

BACnet MSTP Server	1 x RS485
Modbus RTU Slave	24V AC/DC Power
24 MHz ARM Cortex-M3 main processor	12x UI
224KB RAM	4x DO (with LED indicator)
256KB Flash Memory	4x AO

Access here your Technical Documentation

FC-20 Specifications

Explore the specifications.

View

Technical Files

Unlock the technical files.

View
